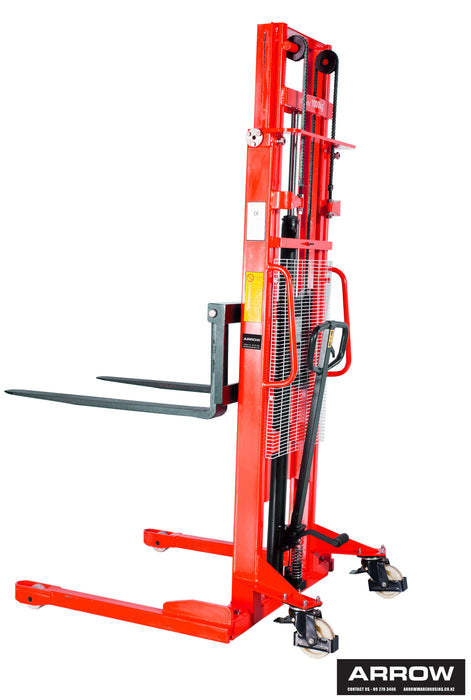

Hydraulic Hand Stacker Truck (Straddle) 3.0 m

SKU 1011
Sold out
Original price $1,900.00 - Original price $1,900.00
Original price
$1,900.00 - $1,900.00
Current price $1,900.00

Price excludes GST

A hand stacker is a safe and affordable alternative to a forklift.  Hand stackers are brilliant for small warehouses where space is tight.

This hand stacker uses a simple hand pump to lift to a maximum height of 3.0 metres.  It is moved by manual pull power.

This is a ″straddle″ style of hand stacker.  That means it has a wide leg distance so that it can drop pallets to the ground (between it's legs).The Straddle is adjustable 1080 to 1360 wide which allows use for a variety of pallets includunding chep

You do not need a forklift licence to use this hand stacker.

Capacity (kg) 1000
Max lifting height (m) 3.000
Lowered height of forks (mm) 90
Fork length (mm) 1070
Adjustable width of fork (mm) 220-850
Lifting speed (mm/stroke) 30
Outer width of front legs (mm) 1080-1360
Overall size (mm) 2080x1400x1470
Weight of unit (kg)
